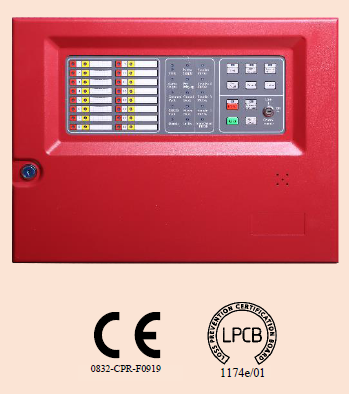

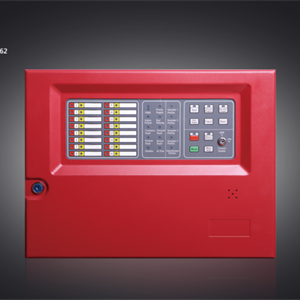

VG-6831 Conventional Fire Alarm Panel

* High quality and reliable performance
* 2/4/8/16 detection zones
* Up to 25 devices for each zone
* Up to 4 programmable supervised sounder circuits
* LED indication and key buttons
* One man walk-test and zone isolate facility
* DAY/NIGHT mode switchable
* Fault buzzer mute facility
* Fully programmable using simple menu options
* Keypad entry to a wide range of functions
* Optional signal output board available for extension
* Three access levels settable via a key switch
* SMT and Microprocessor controller design
* Two wire system to reduce cabling and installation
* Compatible with wide range of conventional devices
* LPCB approval to EN54-2 & EN54-4

VG-6831 is a series of conventional control and indication equipment, range available of 2/4/8/16 zones. Each zone supports 25 field devices of conventional detector and call point. Looking at output side, it has four supervised sounder circuits, two passive contacts for fire and fault and one auxiliary power output, so as to meet
the needs of different users. At the same time, the panel's LEDs are available for the indication of Short or Open Circuit to the detection zone, sounder circuit and fire output.The panel is well designed with keypad entry to a wide range of engineering functions, such as one-man walk test,zone isolate and delay, non-latching zone, evacuation override, etc. The system is also equipped with the function of Day and night mode, which could be switched manually and it is programmed to offer the most suitable solutionno matter during day or night. In order for extension need, the VG-6153 signal output board series are optional choice to add Fire and Fault
output to each zone. Moreover, there is output reserved for Repeater Interface to have remote indication of each zone. With high quality and reliable performance, VG-6831 series is used as trustful brain of a conventional system and compatible with a wide range of conventional field devices.
